XL-50 Height Series

H:Height=50mm
W:Width=from 50mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)
  • XL-50

Availability:

H:Height=50mm
W:Width=from 50mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

H:Height=50mm
W:Width=from 50mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

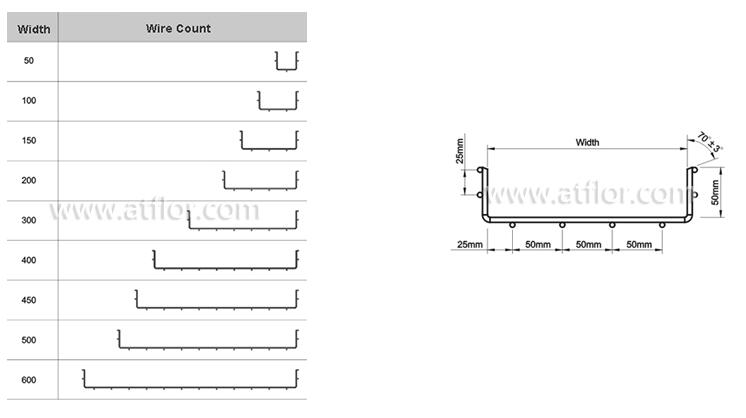

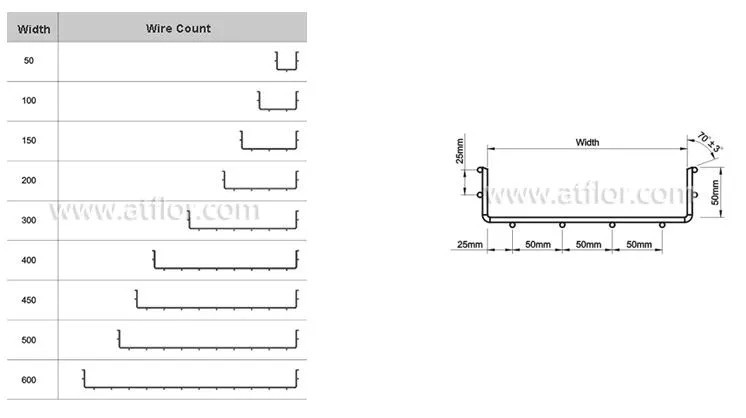

Specification

Item

Height(mm)

Width(mm)

Length(mm)

Dia(mm)

Weight(KG)

XL50-50

50

50

3000

5

3.14

XL50-100

50

100

3000

5

3.84

XL50-150

50

150

3000

5

4.54

XL50-200

50

200

3000

5

5.25

XL50-300

50

300

3000

5

6.65

XL50-400

50

400

3000

5

8.06

XL50-450

50

450

3000

5

8.76

XL50-500

50

500

3000

5

9.47

XL50-600

50

600

3000

5

10.88
