Availability: | |
---|---|
1. Full galvanized steel encased the Calicum sulphate, very good sealing and water-proof
2. High dimensional precision, strong loading ability and shockproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability
4. Elegant appearance for paving wildly brand top tiles
5. light weight, high loading capacity, excellent raised flooring in 21th
6. High recycled, convenient removing, saving cost, long performance life
1. Full galvanized steel encased the Calicum sulphate, very good sealing and water-proof
2. High dimensional precision, strong loading ability and shockproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability
4. Elegant appearance for paving wildly brand top tiles
5. light weight, high loading capacity, excellent raised flooring in 21th
6. High recycled, convenient removing, saving cost, long performance life

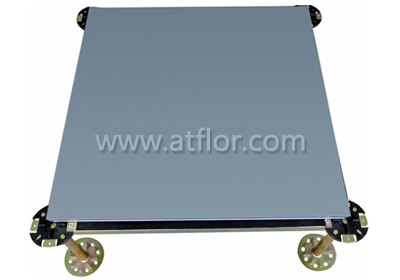

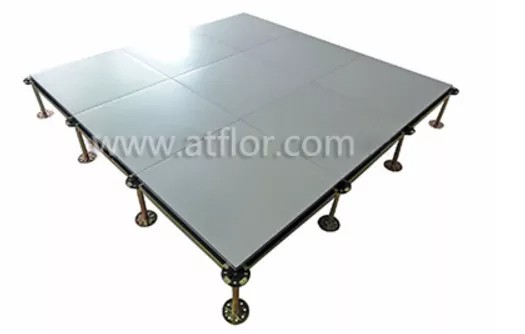

1. Panel-Galvanized steel plate encased the calcium sulphate in six faces, steel sealed edge, with or without coner lock hole in four corner, wildly brand top tiles could be carpet, HPL PVC tiles or other tiles as you like
2. Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm--1500mm, with or without square tube stringer steady connect the system
1. Panel-Galvanized steel plate encased the calcium sulphate in six faces, steel sealed edge, with or without coner lock hole in four corner, wildly brand top tiles could be carpet, HPL PVC tiles or other tiles as you like
2. Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm--1500mm, with or without square tube stringer steady connect the system
Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Type Technology parameter
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS800 | 600x600x31 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x31 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x31 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x31 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x31 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |

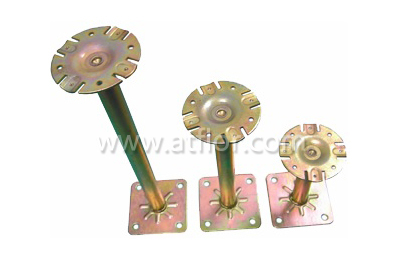

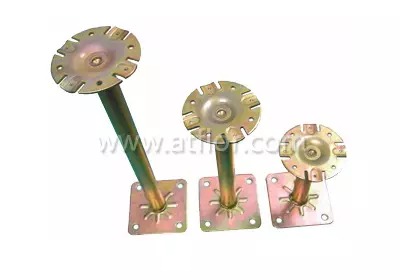

Standard Pedestal SPEC:
FFH(mm) | tube diameter(mm) | adjustment+(mm) | adjustment-(mm) |
≦600 | ф25 | 25 | 25 |
700~900 | ф32 | 25 | 25 |
1000~1500 | ф42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x20x30mm

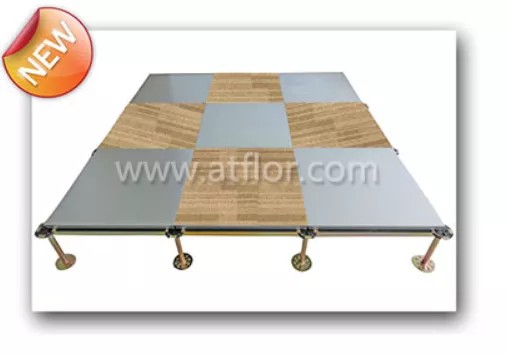

New product:Steel Encased Calicum sulphate Raised Access Floor+magnetic floor
Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office
Type Technology parameter
International | Size(mm) | Fire Performance | Concentrated load | Impact load (N) | Ultimated load (N) | Uniform Load (N/m2) | Rolling load(N) | |||
LB | N | KG | 10 times | 100000 times | ||||||
FS800 | 600x600x31 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x31 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x31 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x31 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x31 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
Standard Pedestal SPEC:
FFH(mm) | tube diameter(mm) | adjustment+(mm) | adjustment-(mm) |
≦600 | ф25 | 25 | 25 |
700~900 | ф32 | 25 | 25 |
1000~1500 | ф42 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 535x20x30mm
New product:Steel Encased Calicum sulphate Raised Access Floor+magnetic floor
