| Availability: | |
|---|---|
Compact sheet, without foam backing
Dimension: 2.0/3.0mm(thickness)*1.83/2.0m(width)*20m(length)
Compact sheet, without foam backing
Dimension: 2.0/3.0mm(thickness)*1.83/2.0m(width)*20m(length)
High performance flexible homogeneous multifunctional floor
UV strengthened, special maintenance treatment, easy maintenance
Strengthened structure to improve wear resistance
Anti-bacteria and mould proof
Antistatic
High performance flexible homogeneous multifunctional floor
UV strengthened, special maintenance treatment, easy maintenance
Strengthened structure to improve wear resistance
Anti-bacteria and mould proof
Antistatic

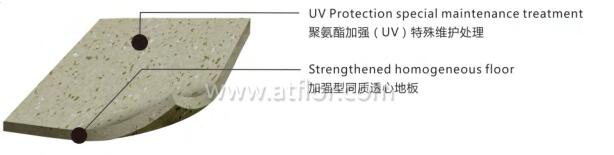

Structure

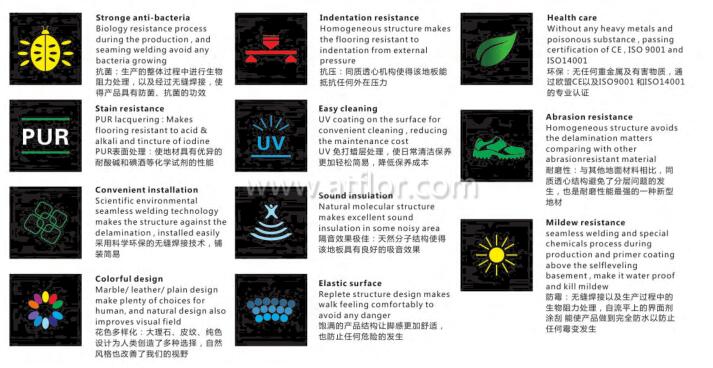

Characteristic
High performance flexible homogeneous multifunctional floor
UV strengthened, special maintenance treatment, easy maintenance
Strengthened structure to improve wear resistance
Anti-bacteria and mould proof
Antistatic
Specification
| TECHNICAL DATA | ||
| Total thickness | EN428 | 2.0/3.0mm |
| Size | EN426 | 1.83/2.0mx20m |
| Weight | EN430 | 2900/4350g/m2 |
| Electric properties | SJ/T11236-2001/EN1081 | Static Dissipative 1.0x106-10x109Ω |
| Conductive 1.0x104-10x106Ω | ||
| Decay time | SJ/T10694-2006(IVI<100V) | EQUAL0.3S |
| Charge voltage | SJ/T10694-2006(IVI<100V) | EQUAL70 |
| Fire rating | DIN4120 | B1 |
| Combustion properties | SJ/T11236-2001(<10S,FV-0) | EQUAL0.35S I FV-0 |
| Smoke density | ASTME-662 | <450 |
| Amount of anti-wear | SJ/T11236-2001(≤0.020g/cm2) | EQUAL0.014 |
| Ati-bacterial | DIN ENISO 846-A/C | No bacteria |
| Wheel pressure | EN425 | No influence |
| Toxic testing | GB18586-2001 | Suitable |
| Smoking toxicity | GB8024-2006 | ZA3 |
| Residual stability | EN433/SJ/T11236-2001 | <0.1mm/≤0.15mm |
| Dimensional stability | EN434 | ≤0.35% |
| Color fastness | ENISO 105-B02 | degree 6 |
| Resistance to chemicals | DIN423、FN ISO 26987 | good |
| Impact sound absorption | VLI、ISO104、ISO717 | Approx2dB |
| Slip Resistance | DIN51130/EN13893 | R9/DS |
| Thermal Conductivity | EN12667 | 0.03w/(M.K) |
| Clean Rooms | ASTM F51/68 | Class A, non-shedding |
| Suitable for use in flowing classes of | ||
| clean room: ISO 1466-11999 Class 4 | ||
Application
Color reference
Structure
Characteristic
High performance flexible homogeneous multifunctional floor
UV strengthened, special maintenance treatment, easy maintenance
Strengthened structure to improve wear resistance
Anti-bacteria and mould proof
Antistatic
Specification
| TECHNICAL DATA | ||
| Total thickness | EN428 | 2.0/3.0mm |
| Size | EN426 | 1.83/2.0mx20m |
| Weight | EN430 | 2900/4350g/m2 |
| Electric properties | SJ/T11236-2001/EN1081 | Static Dissipative 1.0x106-10x109Ω |
| Conductive 1.0x104-10x106Ω | ||
| Decay time | SJ/T10694-2006(IVI<100V) | EQUAL0.3S |
| Charge voltage | SJ/T10694-2006(IVI<100V) | EQUAL70 |
| Fire rating | DIN4120 | B1 |
| Combustion properties | SJ/T11236-2001(<10S,FV-0) | EQUAL0.35S I FV-0 |
| Smoke density | ASTME-662 | <450 |
| Amount of anti-wear | SJ/T11236-2001(≤0.020g/cm2) | EQUAL0.014 |
| Ati-bacterial | DIN ENISO 846-A/C | No bacteria |
| Wheel pressure | EN425 | No influence |
| Toxic testing | GB18586-2001 | Suitable |
| Smoking toxicity | GB8024-2006 | ZA3 |
| Residual stability | EN433/SJ/T11236-2001 | <0.1mm/≤0.15mm |
| Dimensional stability | EN434 | ≤0.35% |
| Color fastness | ENISO 105-B02 | degree 6 |
| Resistance to chemicals | DIN423、FN ISO 26987 | good |
| Impact sound absorption | VLI、ISO104、ISO717 | Approx2dB |
| Slip Resistance | DIN51130/EN13893 | R9/DS |
| Thermal Conductivity | EN12667 | 0.03w/(M.K) |
| Clean Rooms | ASTM F51/68 | Class A, non-shedding |
| Suitable for use in flowing classes of | ||
| clean room: ISO 1466-11999 Class 4 | ||
Application
Color reference
