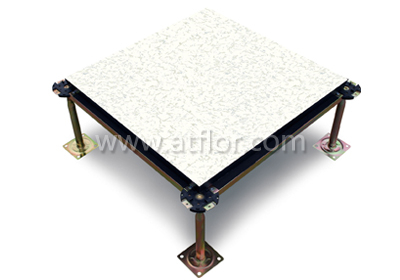

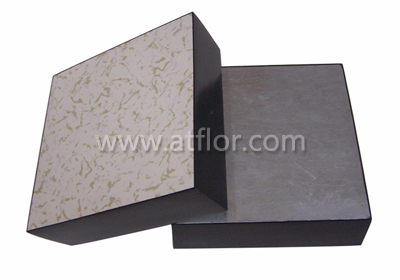

HPL Coated Calcium Sulphate Raised Access Floor

1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,
electromagnetic shielding, environment friendly and innoxious;
2. Strong wearability, non-bubble, non-deguming;
3. Strong support frame, pressurization;
4. High grade, beautiful appearance, easy to fix, convenient for wires;
5. Recyclable, convenient removing, cost saving, long performance life

Product Type : FS800 ~ FS1500
Availability:

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility,

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility,

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning 5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring reform


Technical Data

International Size(mm) Concentrated Load Impact Load (N) Ultimate Load (N) Uniform Load (N/M2) Rolling Load(N)
LB N KG 10 Times 10000 Times
FS662 600x600x35 ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥1250 2946 2356
FS800 600x600x35 ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600x35 ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x35 ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x35 ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340
FS2000 600x600x35 ≥2000 ≥8900 ≥906 ≥1340 ≥26700 ≥46000 8900 7120

*Fireproof Class A

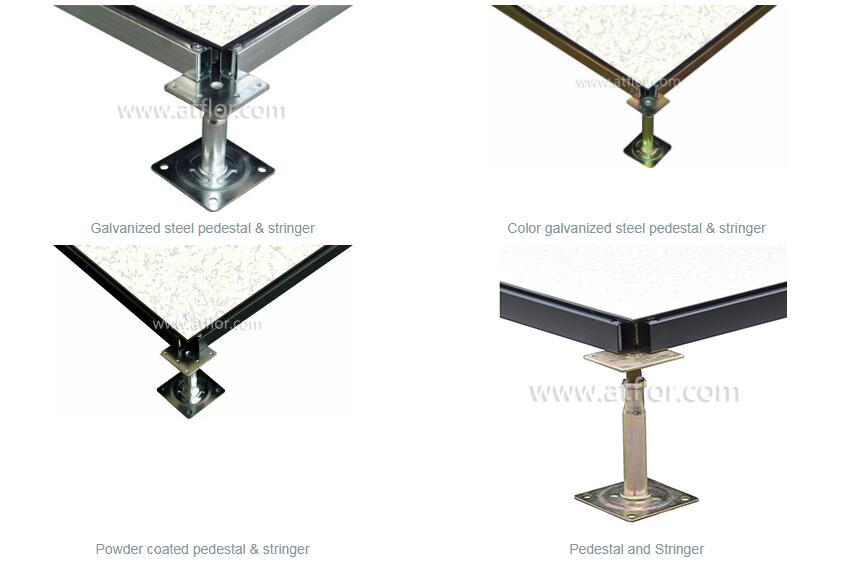

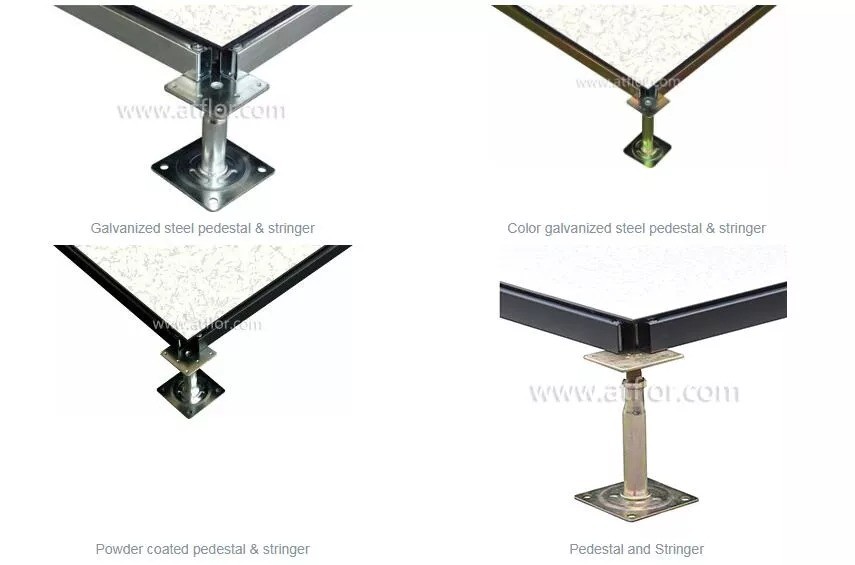

Standard Pedestal and Stringer Specification

FFH(mm) Tube Diameter(mm) Adjustment +(mm) Adjustment –(mm)
≦600 ф25 25 25
700~900 ф32 25 25
1000~1500 ф45 25 25

Other height could be customized.

Standard Stringer SPEC: 21x32x570mM


HPL (High Pressure Laminate)
