FS800 ~ FS2000
ATFLOR
Availability: | |
---|---|
Cementitious Infill Steel Raised Floor

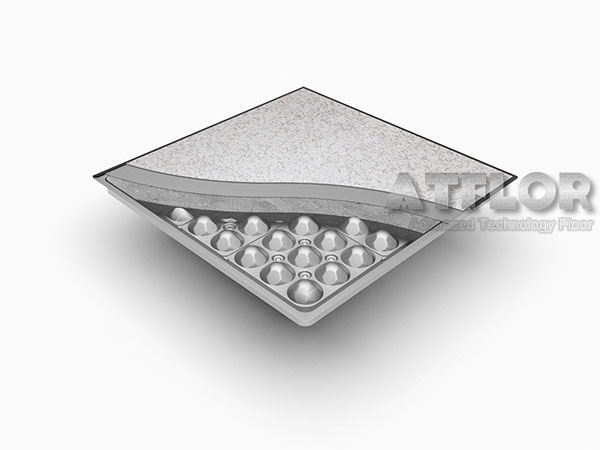

ATFLOR Cementitious Infill Steel Raised Floor panels are epoxy coated shells consisting of a flat steel top sheet welded to a formed steel bottom sheet filled with a scientific mixture of a lightweight cement infill. Manufactured with high precision, these fire proof, rigid panels deliver the ultimate in static control, strength, durability, and acoustic performance.
ATFLOR has a full range of panels to meet standard as per CE and CISCA testing methods and an extensive selection of understructure. For further information on product details, architectural details, system specifications, select the proper panel to meet the needs of your specific application.
Cementitious Infill Steel Raised Floor
ATFLOR Cementitious Infill Steel Raised Floor panels are epoxy coated shells consisting of a flat steel top sheet welded to a formed steel bottom sheet filled with a scientific mixture of a lightweight cement infill. Manufactured with high precision, these fire proof, rigid panels deliver the ultimate in static control, strength, durability, and acoustic performance.
ATFLOR has a full range of panels to meet standard as per CE and CISCA testing methods and an extensive selection of understructure. For further information on product details, architectural details, system specifications, select the proper panel to meet the needs of your specific application.

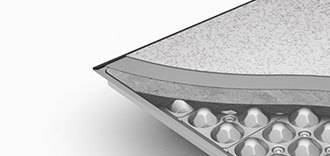

ATFLOR Cementitious Infill Steel Raised Floor Panel
ATFLOR Laminated Steel Panel is intended for data centers with a wide range of load requirement and is engineered to meet ATFLOR standard as per CE& CISCA testing methods.
Key Performance Characteristics
· Panel weight : 14.5kgs/panel
· All steel welded shell filled internally with a lightweight cement infill
· Protected from corrosion by an epoxy coated finish
· Class A fire proof rating
· Non-combustible material
System Performance
ATFLOR Standard with CE& CISCA Testing Methods
Technical Data
International Type | Size (mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling load (N) | |||
LB | N | KG | 10 times | 10000 times | |||||
FS800 | 600x600x35 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x35 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x35 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x35 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x35 | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
*All tests are performed using CE& CISCA's Recommended Test Procedures for Access Floors
ATFLOR Cementitious Infill Steel Raised Floor Panel
ATFLOR Laminated Steel Panel is intended for data centers with a wide range of load requirement and is engineered to meet ATFLOR standard as per CE& CISCA testing methods.
Key Performance Characteristics
· Panel weight : 14.5kgs/panel
· All steel welded shell filled internally with a lightweight cement infill
· Protected from corrosion by an epoxy coated finish
· Class A fire proof rating
· Non-combustible material
System Performance
ATFLOR Standard with CE& CISCA Testing Methods
Technical Data
International Type | Size (mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling load (N) | |||
LB | N | KG | 10 times | 10000 times | |||||
FS800 | 600x600x35 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 600x600x35 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
FS1250 | 600x600x35 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
FS1500 | 600x600x35 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
FS2000 | 600x600x35 | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
*All tests are performed using CE& CISCA's Recommended Test Procedures for Access Floors
Laminates for Data Centers
High pressure laminates (HPL) and Vinyl are the mostly adopted finishes on an access floor in data centers.
Key Performance Characteristics
· Superior wear resistance will not detach, chip or crack
· Simple maintenance with mop cleaning
· Visually appealing with a wide range of color options
ATFLOR offers a variety of laminates for application in data centers. HPL and static control vinyl are prefabricated to the access floor systems, saving installation time and cost. HPL is the most common finish on an access floor in data centers and complies with requirements for static control and ensures simple maintenance. Static control vinyl is specifically designed to control static discharge, which helps protect valuable but sensitive equipment and critical applications by keeping static away.
Laminate Finishes Proposal
Product | Manufacturer | Details | Style |
HPL | Maite | Laminated Floor Tile | Standard Dissipative HPL |
HPL | Meiah | Laminated Floor Tile | High Pressure Laminate |
Static Control Vinyl | HJ | Conductive&Static Dissipative | Conductive or Dissipative Vinyl |
Static Control Vinyl | ATFLOR | Static Dissipative | Homogeneous PVC Tile |
Laminates for Data Centers
High pressure laminates (HPL) and Vinyl are the mostly adopted finishes on an access floor in data centers.
Key Performance Characteristics
· Superior wear resistance will not detach, chip or crack
· Simple maintenance with mop cleaning
· Visually appealing with a wide range of color options
ATFLOR offers a variety of laminates for application in data centers. HPL and static control vinyl are prefabricated to the access floor systems, saving installation time and cost. HPL is the most common finish on an access floor in data centers and complies with requirements for static control and ensures simple maintenance. Static control vinyl is specifically designed to control static discharge, which helps protect valuable but sensitive equipment and critical applications by keeping static away.
Laminate Finishes Proposal
Product | Manufacturer | Details | Style |
HPL | Maite | Laminated Floor Tile | Standard Dissipative HPL |
HPL | Meiah | Laminated Floor Tile | High Pressure Laminate |
Static Control Vinyl | HJ | Conductive&Static Dissipative | Conductive or Dissipative Vinyl |
Static Control Vinyl | ATFLOR | Static Dissipative | Homogeneous PVC Tile |

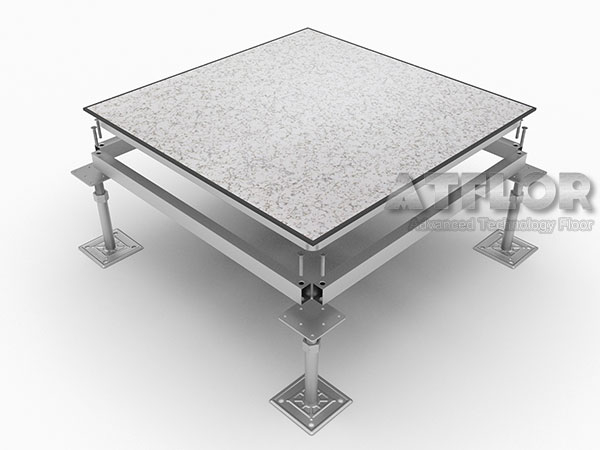

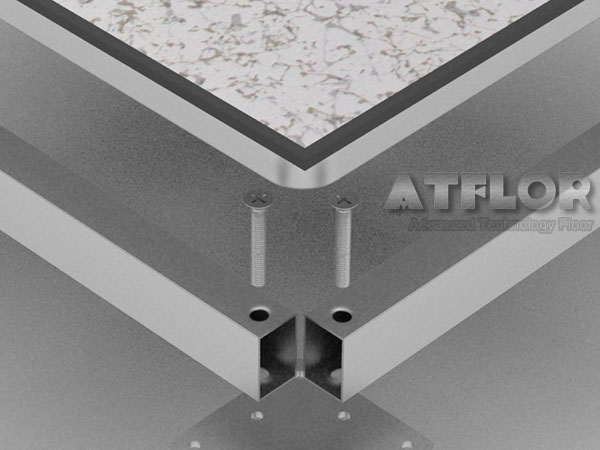

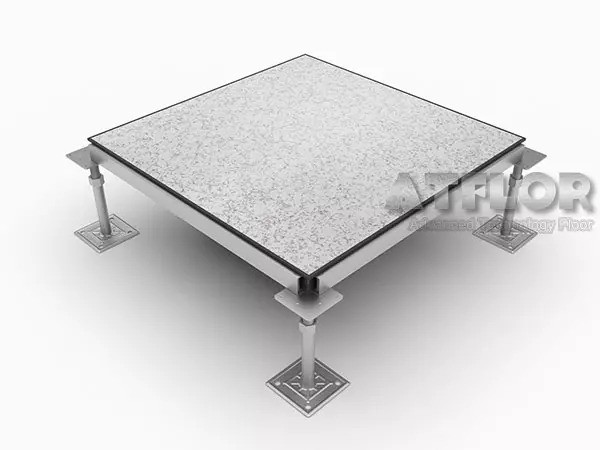

Bolted Stringer Understructure System
Providing lateral resistance to heavy rolling loads, available in standard and high finished floor height options
Key Performance Characteristics
· Designed for computer rooms, data centers, industrial applications, and heavy rolling load areas
· Allowing floors to be installed over 1500mm high
· Gravity-held in understructure for fast removal and replacement
· Stringers providing lateral resistance to heavy rolling loads
· Available seismic resistant pedestal to limit or eliminate the requirement for special bracing
Bolted Stringer Understructure System
Providing lateral resistance to heavy rolling loads, available in standard and high finished floor height options
Key Performance Characteristics
· Designed for computer rooms, data centers, industrial applications, and heavy rolling load areas
· Allowing floors to be installed over 1500mm high
· Gravity-held in understructure for fast removal and replacement
· Stringers providing lateral resistance to heavy rolling loads
· Available seismic resistant pedestal to limit or eliminate the requirement for special bracing
