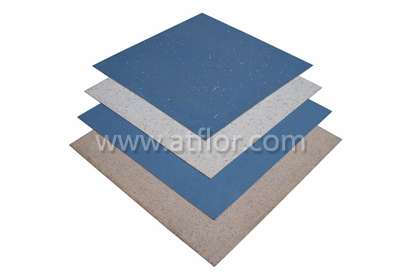

Antistatic PVC Floor
|
|
|
|
| P01 | P02
| P05
| P06 |
|
|
|
|
P03
| P04
| P07 | P08 |
Technical Data
|
|
|
Item | Technical Data |
THICKNESS EN428 | 2.0 mm,2.5mm,3.0mm |
SIZE EN426 | 600×600mm | 610×610mm |
WEIGHT EN430 | 3.8kg/2.0mm,4.8kg/2.5mm,5.8kg/3.0mm |
ELECTRIC PROPERTIES
DIN51953 ASTM F-150 OR NFPA99 | CONDUCTIVE TILE | DISSIPATIVE TILE |
10^4～10^6 ohm | 10^6～10^9 ohm |
DECAY TIME
SJ/T10694-2006（±1000V±100V≤2s） | EQUAL 0.4S | EQUAL 0.4S |
CHARGE VOLTAGE
SJ/T10694-2006(|V|＜100V） | EQUAL 70 | EQUAL 70 |
FIRE RESISTANCE
DIN4102 | B1 | B1 |
COMBUSTION PROPERTIES
SJ/T11236-2001（＜10S, reachFV-0） | EQUAL 0．35s|FV-0 | EQUAL 0．35s|FV-0 |
AMOUNT OF ANTI-WEAR
SJ/T11236-2001(≤0.020g/㎝21000r) | EQUAL 0.014 | EQUAL 0.014 |
ANTI-WEAR PROPERTIES
EN660pt2 | ITEN-T＜2.0mm3 | ITEN-T＜2.0mm3 |
WHEEL PRESSURE
EN425 | No influence | No influence |
RESIDUAL CONCAVITY
EN433/DIN51955 | 0.03mm(2.0 mm)
0.035 mm(2.5 mm)
0.04 mm(3.0 mm) | 0.03 mm(2.0 mm)
0.035 mm(2.5 mm)
0.04mm(3.0 mm) |
DIMENSIONAL STABILITY EN434 | ≤0.10% | ≤0.10% |
COLOR FASTNESS ISO105BO2 | At least 6 | At least 6 |
RESISTANCE TO CHENMICALS DIN423/DIN51958 | Offers excellent
resistance ask for special sheet | Offers excellent resistance ask for special sheet |
IMPACT SOUND ABSORPTION VLI,ISO104,ISO717 | Approx 2dB | Approx 2dB |
STANDARD FOR HEALTH CARE FACILITIES NFPA 99 | Confirms to the requirement
of NFPA99 ineffect at the
tine of installation
|
|
PVC installation guide
1 Materials include:
Dissipative PVC tile
Conductive adhesive
Welding rod
Copper foil
2 Main tools include:
Grooving machine, plastic welder, rubber hammer, cutting-off tool, ruler, brush, waxing machine, etc.
3 Ground requirements
The basic ground should be clean, dry and flat.
The foundation should be cement or terrazzo ground, but couldn’t have the phenomenon of sanding and separation. The strength of surface cement can’t be lower than No.75.
The ground should be flat, the unevenness must be less than 2/2000mm or make self-leveling cement ground.
If the foundation is formation, the ground must do waterproofing.
4 Note of installation
At installation, the ground residual moisture should not exceed 2.5% (CMDUMB test). The PVC floor, adhesive and job site’s temperature must keep above 18 degrees Celsius in 24 hours before the installation. High quality conductive adhesive and copper foil must be used in the installation.
5 PVC installation
Observe the layout of room, delimit datum line.
Lay copper foil. The intersection of the copper foil should be the center of PVC tile. The copper foil should be straight, not curly, not discontinuous. Make sure there’s long enough copper foil connected to the grounding terminal.
Brush conductive adhesive to the ground and copper foil. Uniform, overall, let it natural air-dry
Lay PVC tile efficiently when adhesive turn dry and not sticky to hand. The edges of the PVC should align with the datum line. Leave a bit gap about 1~2mm between tiles, but the width should be same. Tap the tiles with rubber hammer. Ensure tiles glued firmly. If the place is less than the length of the tile, precisely measure the size of floor, then cut and places it.
After laying all the PVC tiles, use grooving machine to open welding slot along with the gap. Slot line should be smooth and uniform. Generally, width 3±0.2mm is better.
Welding the slot for elegant appearance
After installation, clean the PVC floor.
