Availability: | |
---|---|
1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention
2.High dimensional precision, strong loadability and shockproof
3.Adjustable height for pedestal(applied patent), assembly agility, large wire, good exchangeability
4.Outlet mating trunking at will. Elegant appearance for paving wildly brand top tiles
5.Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
6.High recycled, convenient removing, saving cost, long performance life
1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention
2.High dimensional precision, strong loadability and shockproof
3.Adjustable height for pedestal(applied patent), assembly agility, large wire, good exchangeability
4.Outlet mating trunking at will. Elegant appearance for paving wildly brand top tiles
5.Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
6.High recycled, convenient removing, saving cost, long performance life

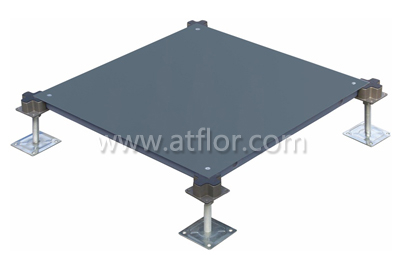

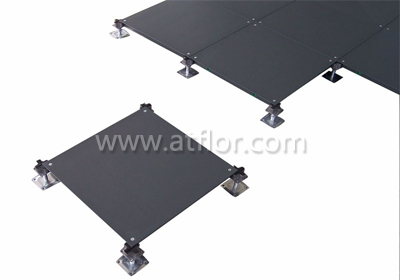

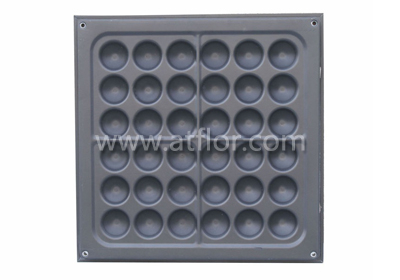

1. panel-Cementitious infill steel welded steel sheel, corner lock hole in four corner, top tiles could be carpet, PVC tiles or other tiles as you like
2. pedestal-die casting cross aluminium top,cross rubber gasket on top, steel structure as base, height could be 50mm ---1000mm
3. sharp top screws lock the panel coner and pedestal
1. panel-Cementitious infill steel welded steel sheel, corner lock hole in four corner, top tiles could be carpet, PVC tiles or other tiles as you like
2. pedestal-die casting cross aluminium top,cross rubber gasket on top, steel structure as base, height could be 50mm ---1000mm
3. sharp top screws lock the panel coner and pedestal
Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform
Technicial Specification
International | Size(mm) | Fire performance | Concentrated load | Impact load (N) | Ultimate load (N) | Uniform Load (N/㎡) | Rolling load(N) | |||
LB | N | Kg | 10 Times | 10000 Times | ||||||
FS440 | 500x500x28 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
FS662 | 500x500x28 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | 500x500x28 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 500x500x28 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |

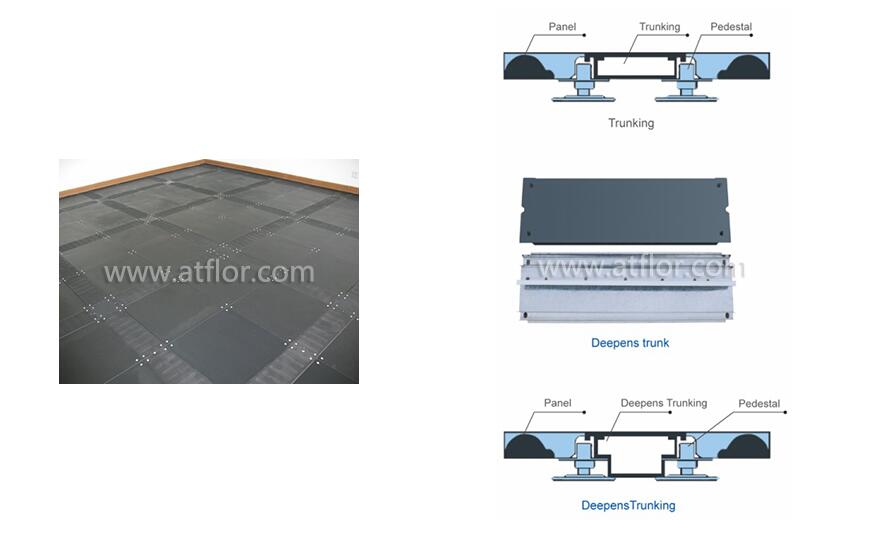

Bare Finish Steel Raised Access Floor+Trunking

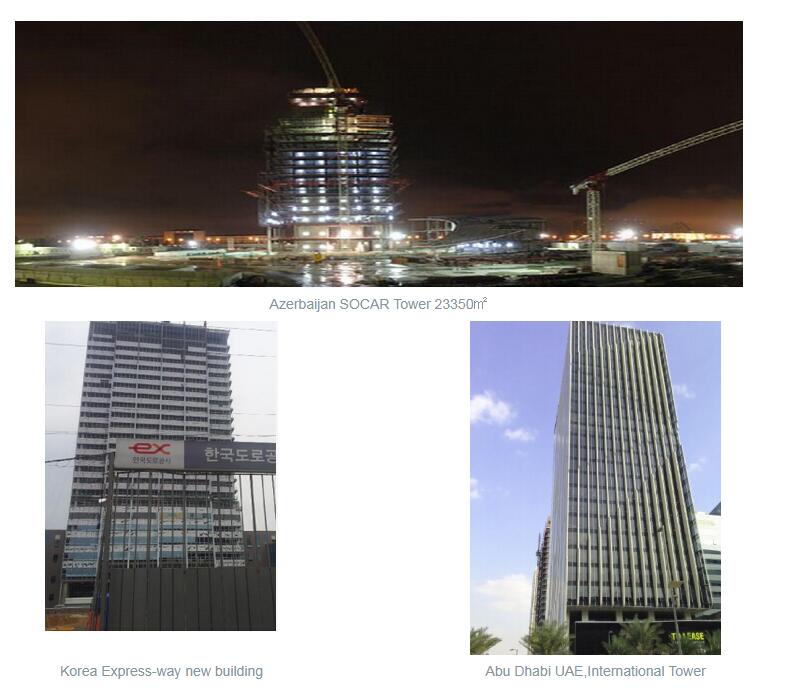

Case
Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform
Technicial Specification
International | Size(mm) | Fire performance | Concentrated load | Impact load (N) | Ultimate load (N) | Uniform Load (N/㎡) | Rolling load(N) | |||
LB | N | Kg | 10 Times | 10000 Times | ||||||
FS440 | 500x500x28 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
FS662 | 500x500x28 | A | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
FS800 | 500x500x28 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
FS1000 | 500x500x28 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
Bare Finish Steel Raised Access Floor+Trunking
Case
